Infrastructure

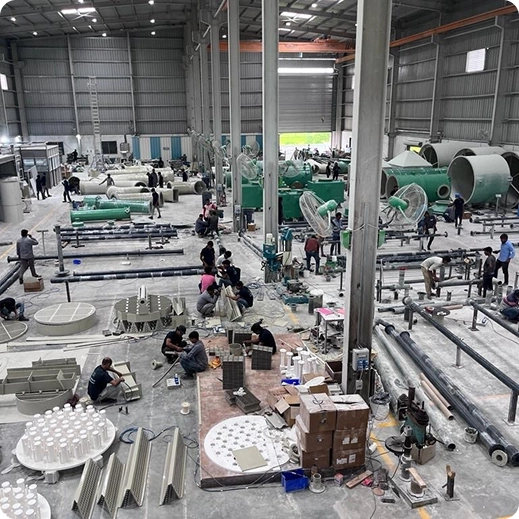

Overall Manufacturing Facility
Area - 2,50,000 Sq Ft
| Machines | Facilities |
|---|---|
| CNC Operated Filament Winding Machine |
Ultra Large Manufacturing Bay 10m x 14m - 2 Nos. |
| CNC Operated Filament Welding Machine |
Large Manufacturing Bay 7.5m x 10m - 18 Nos. |
| CNC Operated Slotting & Cutting Machines |
Small & Medium Manufacturing Bay 3.75m x 10m - 34 Nos. |
| Swiss Extrusion Welding Machine |
Assembly & Tacking Area 18m x 30m |
| Overhead Cranes - 10 Tons x 6 nos. |
Hydrotest Area 12m x 60m |
| Lathe & Drill Machines |
GRP Piping Manufacturing Area 36m x 20m |
| Metal Moulds for GRP Fittings |
RM Storage & Holding area - 1500 m2 |
| Inhouse QC Testing Facility for Raw Materials, In Process & Finished Goods |
FG Holding area - 3000 m2 |
Quality Control Laboratory
SHEPL Inhouse Testing Facilities
- An ISO 9001:2015, 14001:2015, 45001:2018 Certified Company by Bureau Veritas.
- Testing is done as per ASTM/DIN/IS standards.
- Our testing equipment’s and measuring instruments are calibrated at a defined frequency by NABL certified laboratories/agencies
- Chemical testing of raw materials is conducted in-house periodically.
Finish Goods
| Sr. No. | Test Name | Standard |
|---|---|---|
| 1 | Tensile Strength |
EN 13121-3: 2016 CLAUSE - D.5, ISO 527- 4 & ASTM D638 |
| 2 | Lap Shear Strength | BS EN 13121-3 Clause D.8 |
| 3 | Bond Strength Test | EN ISO 1172 & |
| 4 | Peel Strength | BS EN 13121-3: 2016 Clause D.9 |
| 5 | Barcol hardness | ASTM D2583 & EN59 |
| 6 | Acetone wipe | EN BS 49 |
| 7 | Flexural | ASTM D 790 |
| 8 | Thermoplastic Bend | BS EN 13121 |
| 9 | Hydro/Water fill/pneumatic test/vacuam | BS EN 13121& AWWA C950/ASME SEX -X, RTP-1 |
| 10 | Compression | ASMT D695 |
| 11 | Spark test | BS EN 13121 |
| 12 | DFT | GEP/drawing/procedures |
| 13 | Glass Content | ASTM D 2584 |
| 14 | Density | ASTM D792 |
| 15 | Water absorption | ASTM D570 |
| 16 | Chemical resistance Test | ASTM D543 |
| 17 | Hoop tensile | ASTM DD638/02290 |
| 18 | Stiffness Test | ASTM D2412 |
| 19 | Mass density | ASTM C-29 |
| 20 | Thermoplastic Tensile test | ISO 527-4 & ASTM D638 |
| Sr. No. | Test Name | Standard |
|---|---|---|
| 1 | DFT | GEP/drawing/procedures |
| 2 | PMI | GEP/drawing/procedures |
| 3 | Heat Deflection Temperature on cured resin sample (HDT) | ASTM D792 |
| 4 | Abrasion test for anti-abrasion coating | ASTM D4060 |
| 5 | Resistance to Chemical Reagent | ASTM D543 |
| 6 | UV Test | ASTM G154 |
| 7 | Hoop tensile (Above 500NB) | ASTM DD638/D2290 |
| 8 | Metallic welding test for approval /certification/qualification | AWS |
| 9 | Stiffness Test (Above 500NB. | ASTM D2412 |
| 10 | Water testing | As per requirement |
Design & Development
Manufacturing Standards
➤ BS EN 13121
➤ ASTM D 3299-81
➤ ASME- Section X
➤ ASME RTP-1-2000
➤ DVS 2207
➤ FEA (Finite Element Analysis) to Validate Design
➤ DIN 16965/16966
➤ AWWA C950
➤ ASTM 2310/2992/2996
➤ BS 7159
➤ ISO 14692
➤ 15 12709/14402
Turnkey Approach towards Green Environment
Office & Training Facilities
